Description

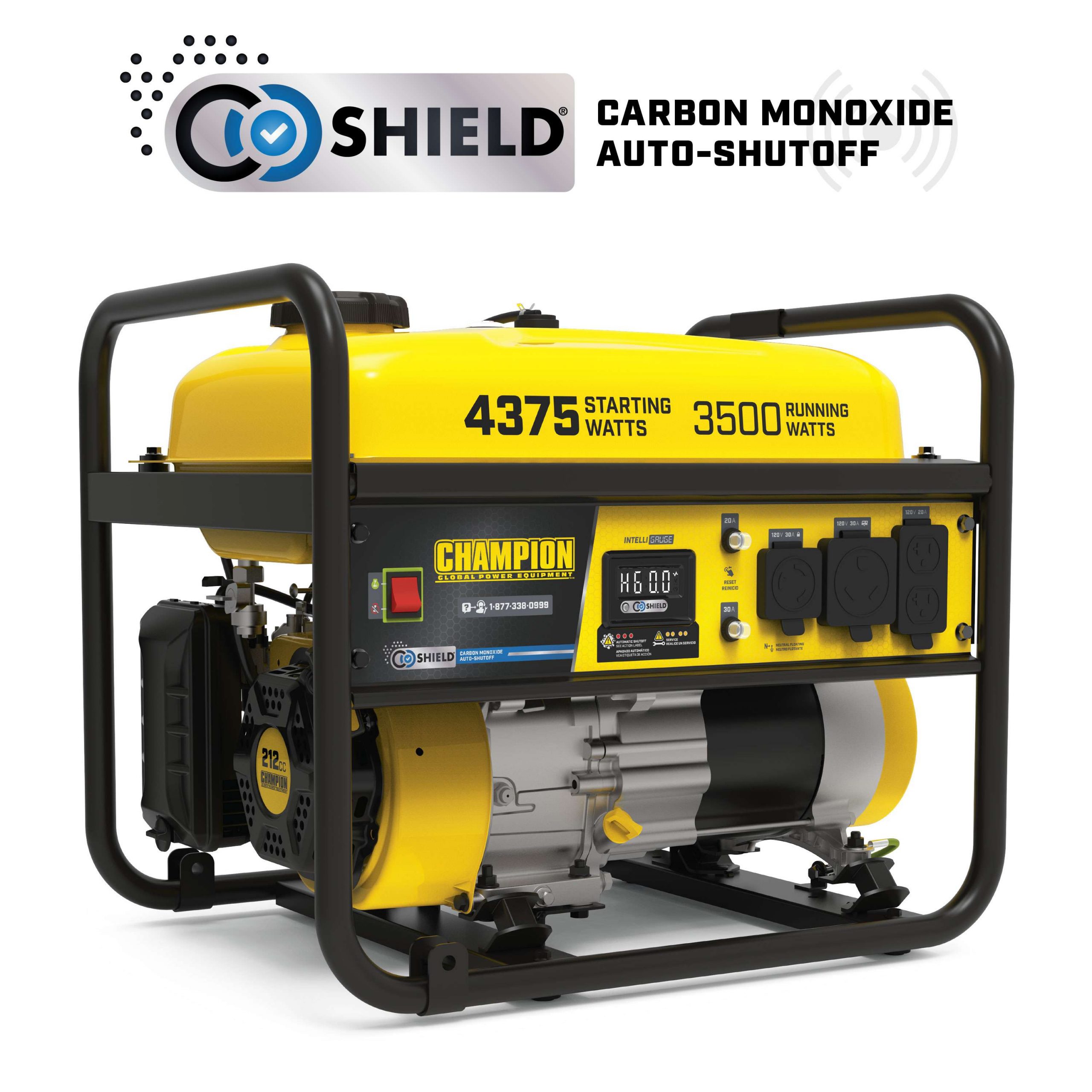

The Champion Power Equipment 201286 3500-Watt RV Ready Portable Generator with CO Shield® is the perfect combination of versatility and convenience. A powerful companion for your next camping trip or weekend project, this generator can also provide plenty of backup power for your essentials during an outage. For your RV, you’ll enjoy enough power to start and run a 15,000 BTU RV air conditioner.
Power up with Champion’s reliable recoil start, plus Cold Start Technology ensures a quick start in cold weather. Champion also makes it easy to monitor voltage, frequency and operating hours with Intelligauge.
Designed for safety with convenient push-to-reset circuit breakers, a low oil shut-off switch plus an included oil funnel for easy changes, this unit has a 0.6-quart oil capacity (recommended 10W-30).
The reliable 212cc single-cylinder OHV Champion engine produces 4375 starting watts and 3500 running watts, and will run for up to 12 hours at 50% load when the 4.7-gallon tank of gasoline is full.
With a noise level of 68 dBA from 23 feet, which is about as loud as a vacuum cleaner, this machine can handle most essentials in an outage, plus the Volt Guard™ built-in surge protector prevents overloads and keeps your equipment safe from spikes in voltage.

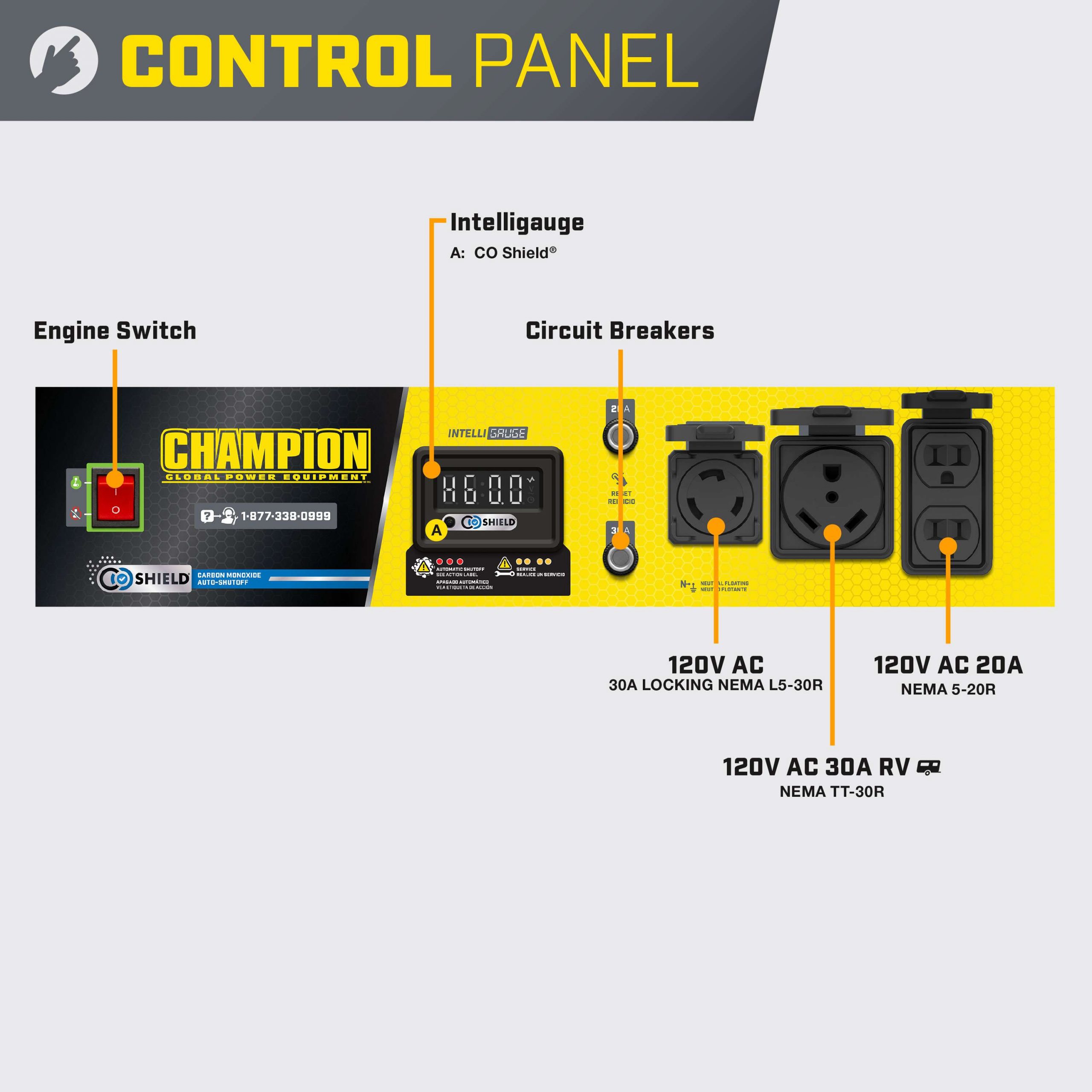

All the outlets have covers for protection and include a 120V 30A (TT-30R) RV outlet as well as a 120V 30A locking outlet (L5-30R) and a 120V 20A household duplex outlet (5-20R).
Champion’s thoughtful packaging and clear directions make setup hassle free.
Buy this EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.
CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.

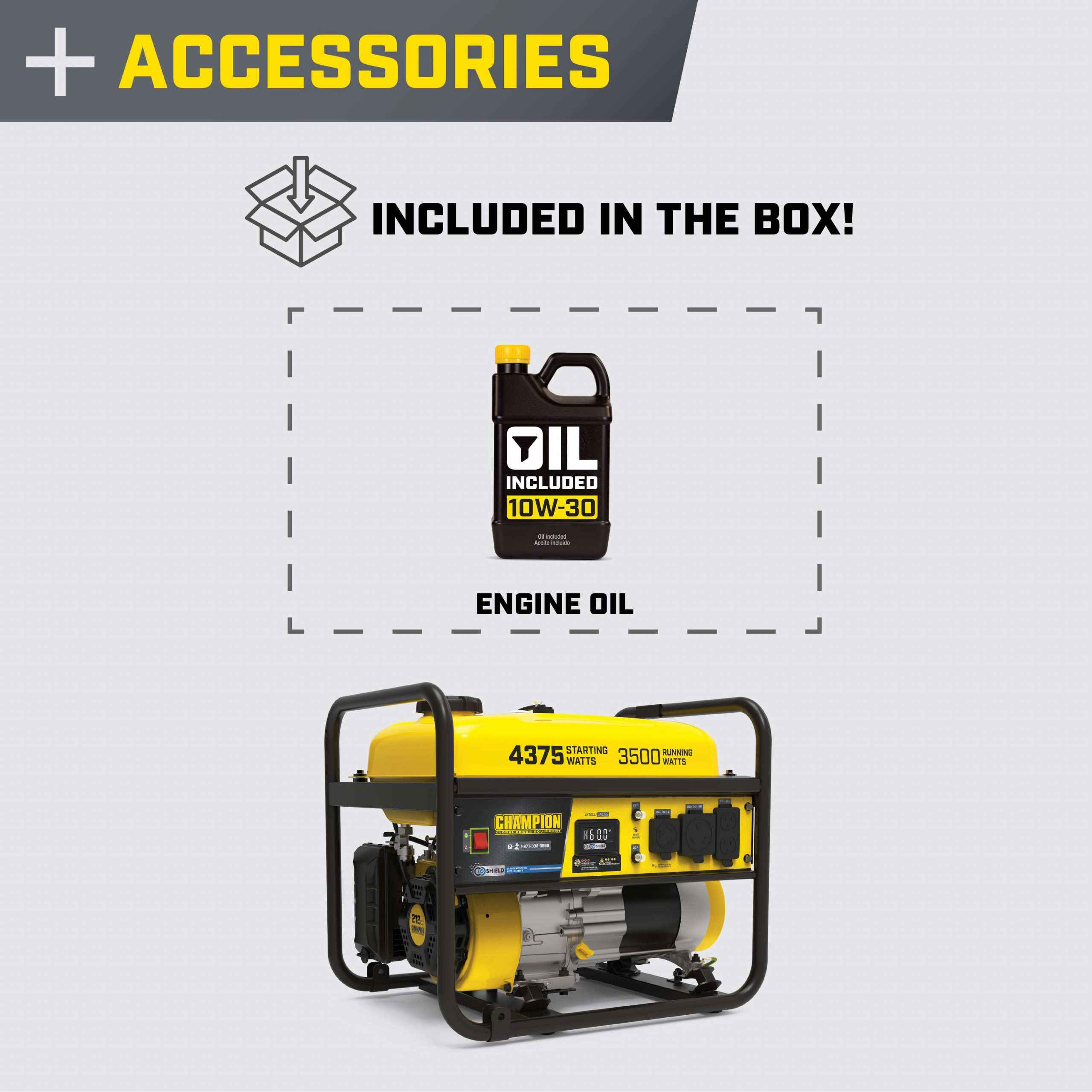

What’s included
- Oil Funnel
- Engine Oil

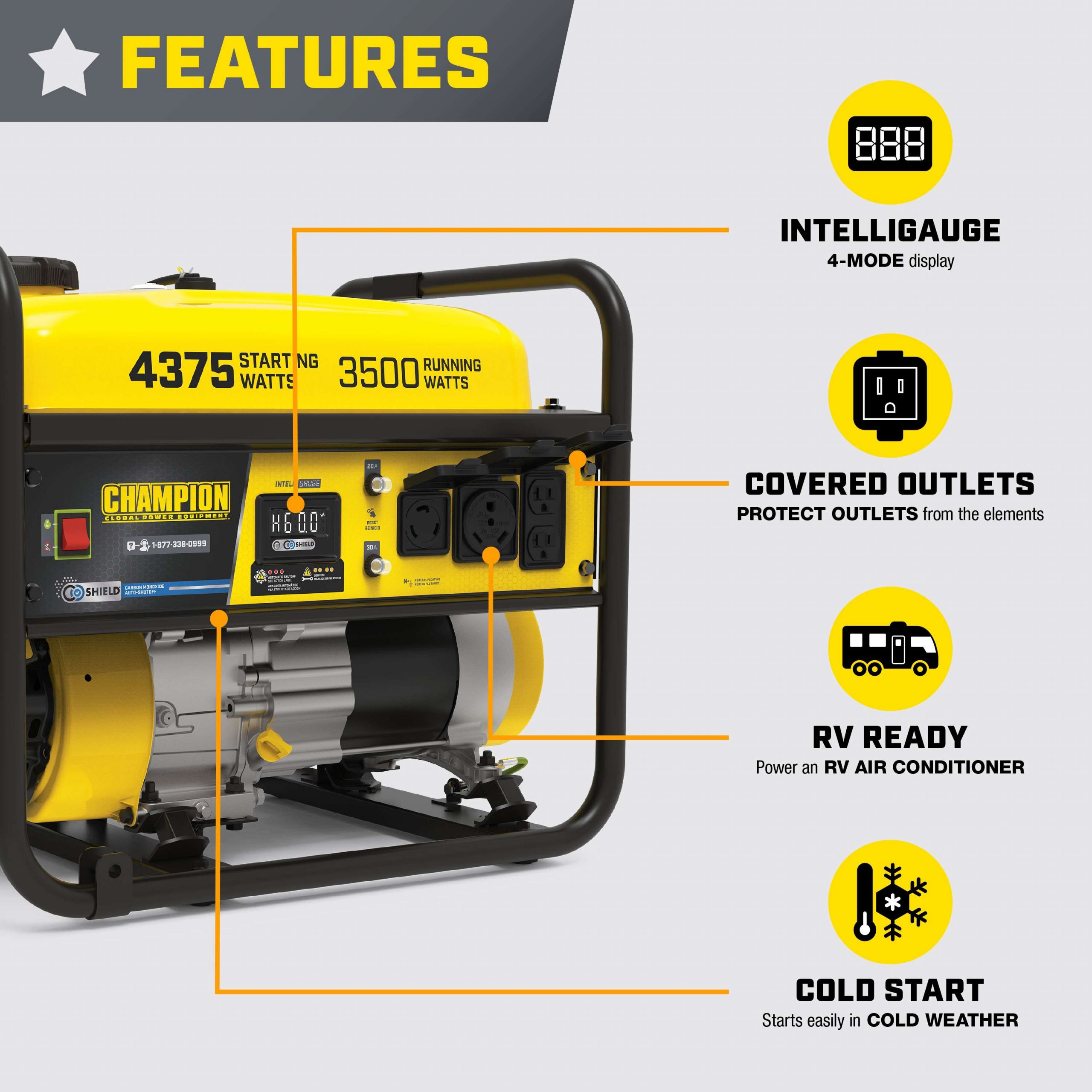

Features
Designed for Safety
Includes a low oil shut-off switch and holds 0.6-quarts of oil (recommended 10W-30)
Reliable and Powerful
At 4375 starting watts and 3500 running wats, enjoy up to 12 hours of run time on a full tank of gasoline with a noise level of 68 dBA from 23 feet
Covered Outlets
120V 30A Locking, 120V 30A RV and a 120V 20A household duplex outlet – Volt Guard™ built-in surge protector prevents overloads and keeps your appliances and equipment safe
Intelligauge
Monitor voltage, frequency and operating hours with ease, plus features CO Shield® carbon monoxide auto shutoff system
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Specifications
| Portable Generator Technology | CO Shield® |
|---|---|
| Gasoline Starting Watts | 4375W |
| Gasoline Running Watts | 3500W |
| Gasoline Starting Amps at 120V | 36.5A |
| Gasoline Running Amps at 120V | 29.2A |
| Volts | 120 |
| Frequency | 60Hz |
| Receptacles | (1) 120V Duplex (5-20R), (1) 120V (TT-30R), (1) 120V Locking (L5-30R) |
| DC Operation | No |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/2 Load | 12 h. |
| Noise Level | 68 dB(A) |
| Inverter | No |
| Parallel Capability | No |
| Voltmeter | Intelligauge |
| Automatic Voltage Regulation | Yes |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 212cc |
| Engine Type | 4-stroke |
| Engine Speed | 3600 |
| Fuel Type | Gasoline |
| Fuel Gauge | Mechanical |
| Gasoline Capacity | 4.7 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.6 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | No |
| PGMA Compliant | G300-2018 |
| EPA Certified | Yes |

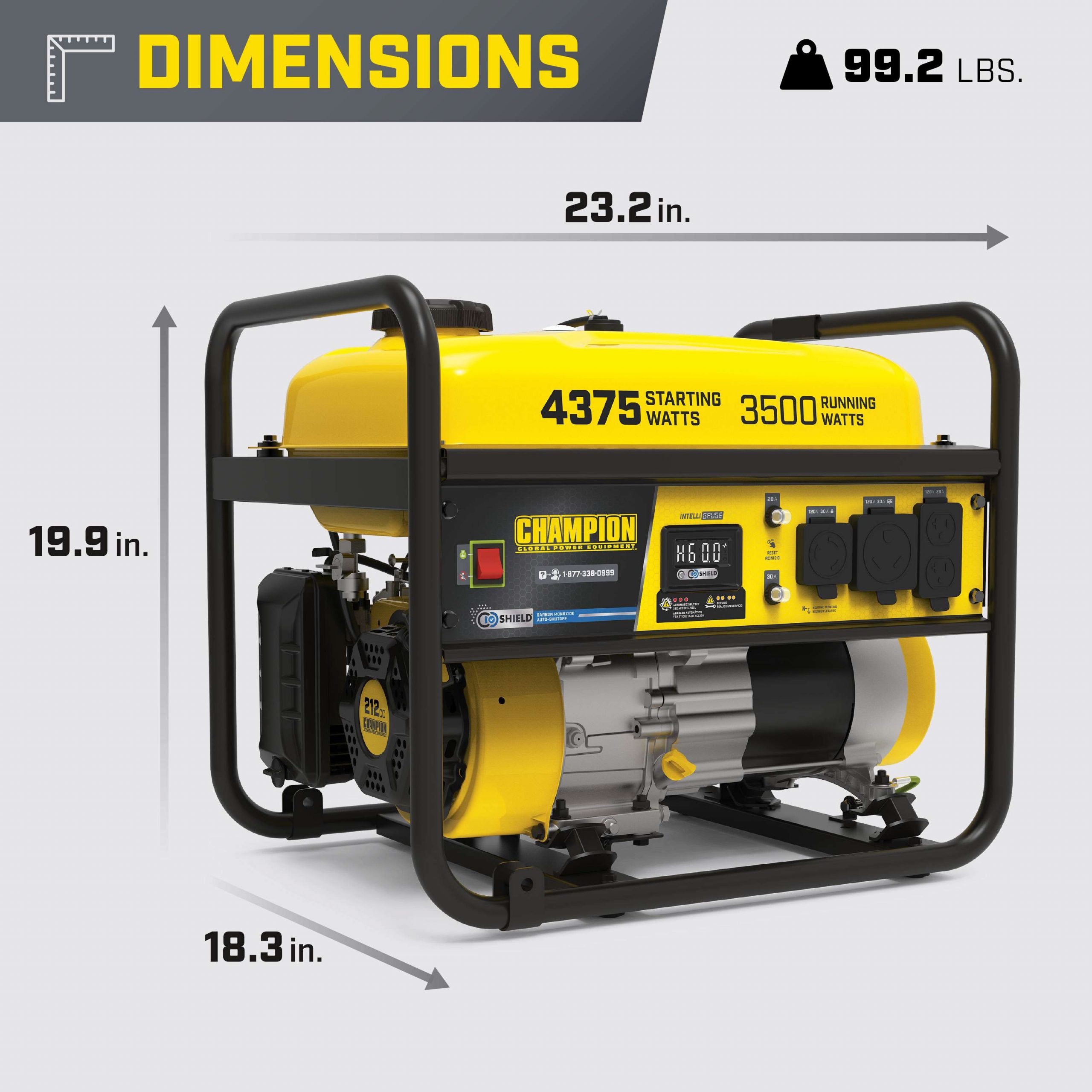

Dimensions
| Length | 23.2 in. |
|---|---|
| Width | 18.3 in. |
| Height | 19.9 in. |
| Weight | 99.2 lb. |
