Description

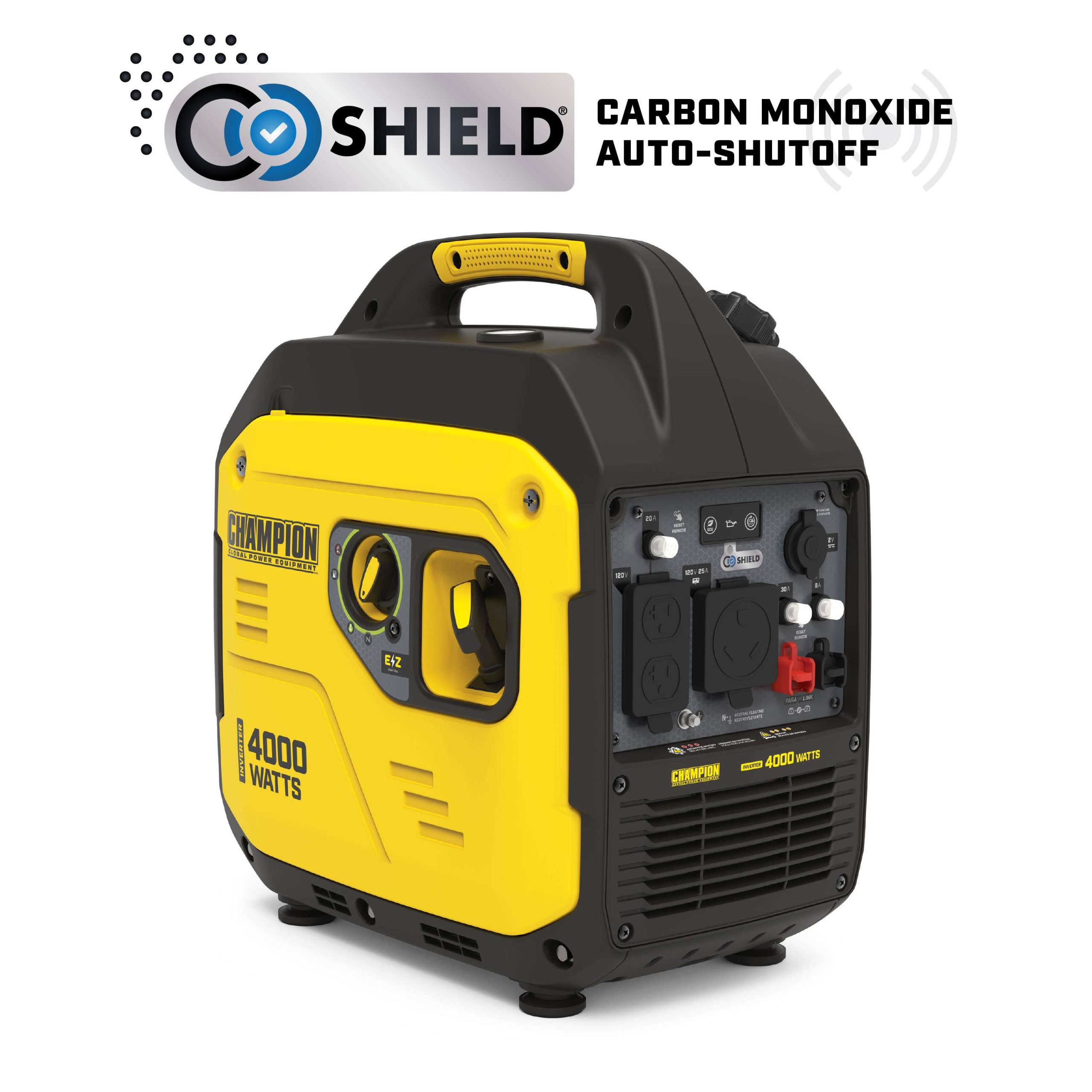

The Champion Power Equipment 100809 4000-Watt Portable Inverter Generator with CO Shield® is ideal for camping, tailgating, powering items around the RV or providing backup for a few basics. This unit is not recommended for emergency home backup.

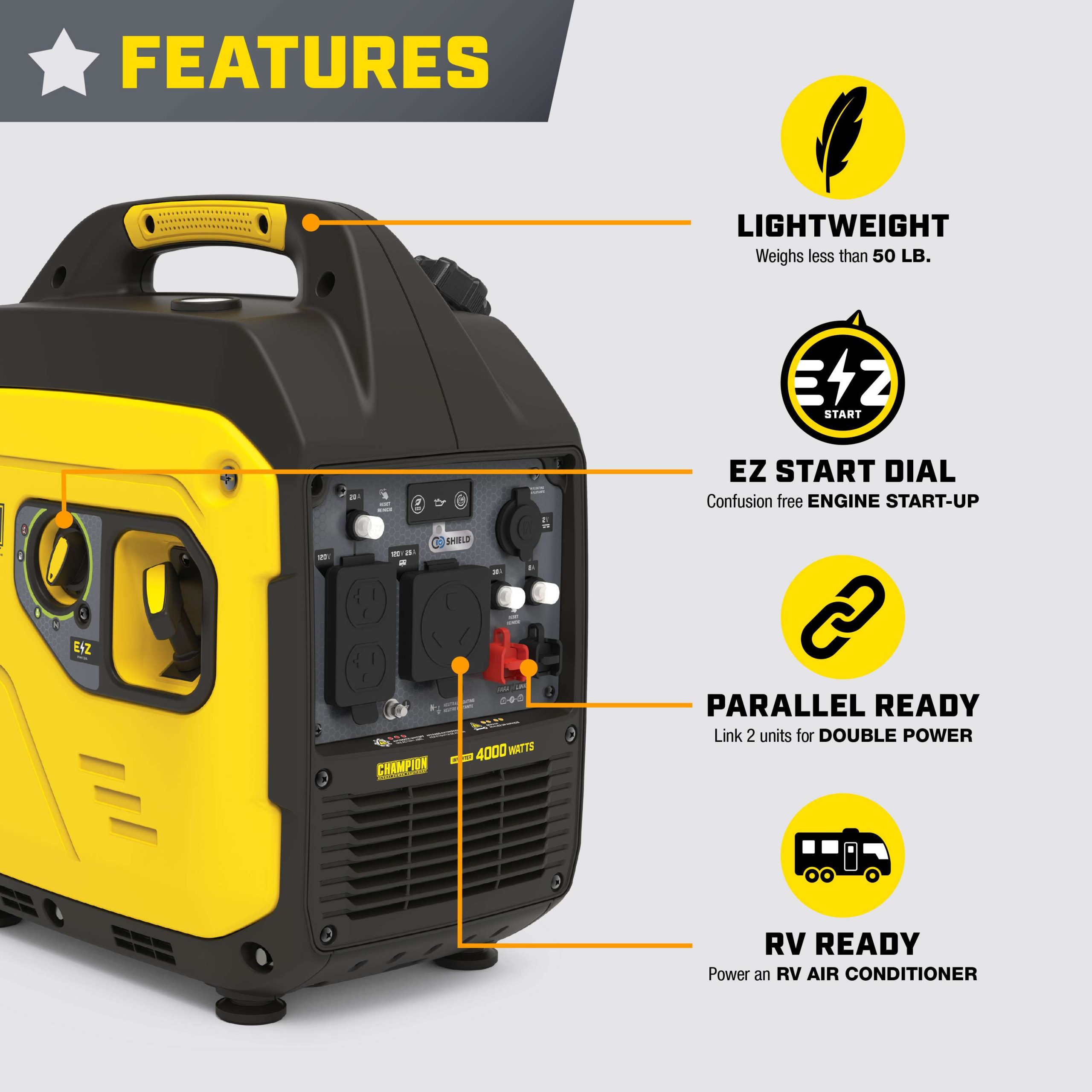

Weighing less than 49 pounds, this light model is one of the lightest 4000-watt inverters in the industry. Thanks to Champion’s innovative design, power on the go has never been easier.
Power up with the reliable recoil start, plus Cold Start Technology ensures a quick start in cold weather.

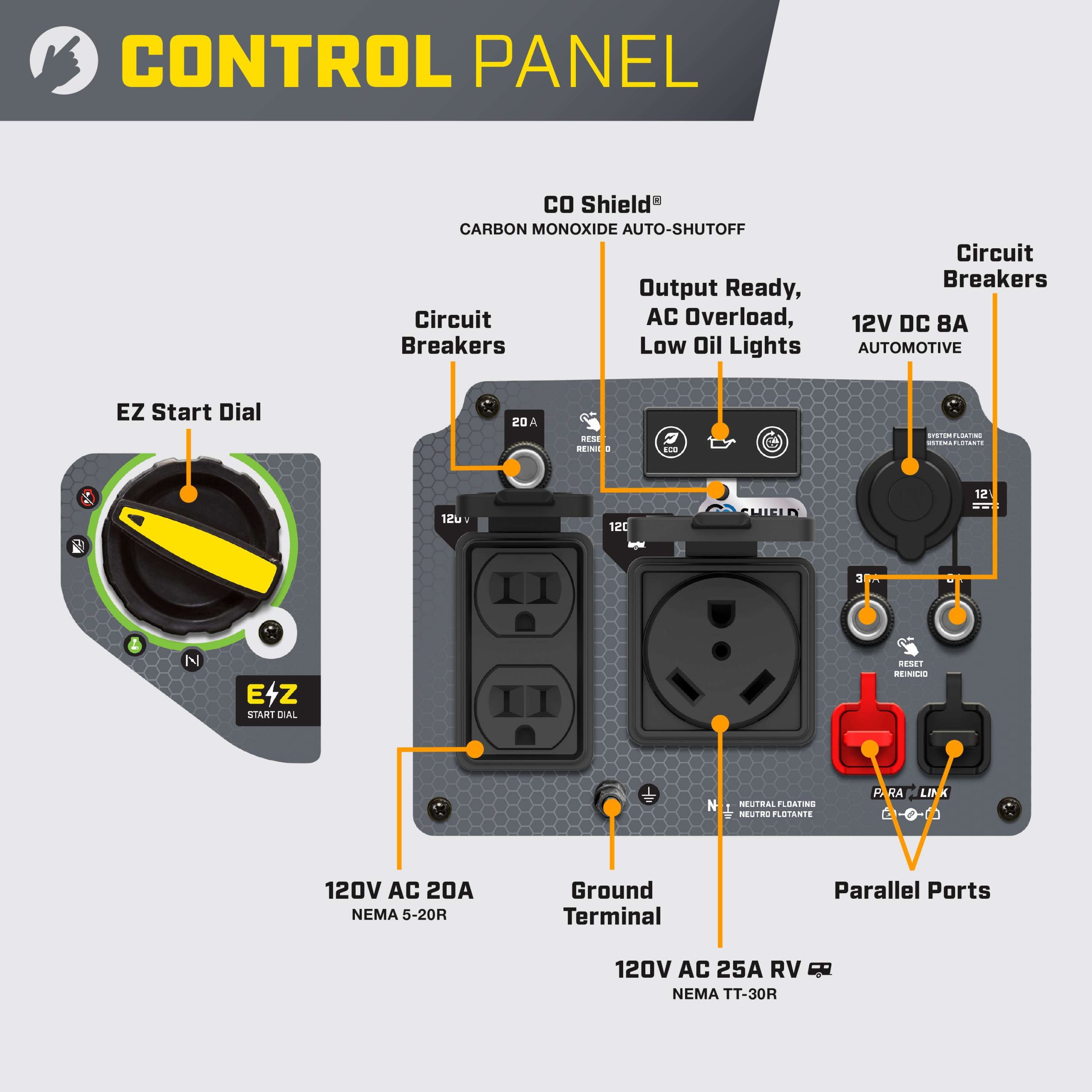

Included are a a 120V 25A TT-30R outlet, a 120V 20 A household duplex outlet (5-20R), plus a 12V automotive-style outlet, and Parallel outlets. This inverter operates at 64 dBA from 23 feet.
Using gasoline, the 149cc Champion engine produces 4000 starting watts and 3000 running watts.
When the 1.54-gallon tank of gasoline is full, this inverter will run up to 10 hours at 25% load.
Connect this Parallel Ready inverter with another Champion 4000-watt inverter for 30 amps of power. If you purchase the optional parallel kit (not included), you can integrate two inverters, plus the kit has a 120V 30A locking and 120V 50A RV outlet.
Confidently connect your sensitive electronics since this inverter produces Clean Power (< 3% THD). Designed for safety with a low oil shut-off sensor, this model has a 0.5-quart oil capacity.
Champion’s Inverter Technology includes smart Economy Mode, which monitors the electrical load to reduce engine speed, noise, and fuel consumption.
Fully assembled with hassle-free setup, the built-in carrying handle makes transport a cinch.
Buy this EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.
CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Engine Oil
- Oil Funnel
Specifications
| Portable Generator Technology | CO Shield® |
|---|---|
| Gasoline Starting Watts | 4000W |
| Gasoline Running Watts | 3000W |
| Gasoline Starting Amps at 120V | 33.3A |
| Gasoline Running Amps at 120V | 25A |
| Volts | 120 |
| Frequency | 60Hz |
| AC Receptacles | (1) 120V 20A Duplex (5-20R), (1) 120V 25A (TT-30R), Parallel |
| DC Operation | Yes |
| DC Receptacles | (1) 12V DC Automotive |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 10 h. |
| Noise Level | 64 dB(A) |
| Inverter | Enclosed |
| Parallel Capability | Yes |
| Voltmeter | No |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 149cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | Mechanical |
| Gasoline Capacity | 1.54 gal. |
| Gasoline Tank Material | Plastic |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.5 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | No |
| PGMA Compliant | G300-2018 |
| EPA Certified | Yes |
Measurements
| Length | 17.9 in. |
|---|---|
| Width | 11.7 in. |
| Height | 19.7 in. |
| Weight | 48.1 lb. |
SuperGen Products-
SuperGen Products is a Full-Line Distributor and Dealer of Champion Power Equipment.
SuperGen Products is also a Manufacturer Authorized Refurbisher for Champion Power Equipment, thus providing both great sales and service.
We offer 24/7 Technical Support by calling us at 1-8GENERATOR (1-843-637-2867)
Shipping:
SuperGen Products ships within 48 hours of payment being received.
Shipments will be sent by FedEx Ground to the address provided by Buyer and confirmed by PayPal.
Inaccurate addresses may delay deliveries and incur additional charges for delivery.
Please contact SuperGen Products for special pricing on multiple units.
Contact FedEx with delivery questions or problems, including delays in shipping or delivery problems.
FedEx will be responsible for merchandise damaged in shipment. Shipment will be left at your doorstep unless you provide specific instructions.
Returns:
Items may be returned within thirty (30) days after shipment is received. Buyer pays shipping costs. Please contact SuperGen Products for pre-authorization on returns.
Damages:
Items damaged in shipping are the responsibility of FedEx. Contact SuperGen Products to replace the item and assist with filing your claim with FedEx.
Defects:
Defective items will be serviced or replaced by SuperGen Products.
Warranty:
Champion Power Equipment offers a 3 year limited warranty. If you have any questions or problems with your generator, call our 24/7 Tech Support Line at 1-8GENERATOR (1-843-637-2867)
